Dimension & GD&T extraction
Read and organize callouts, dimensional values, tolerances and geometric characteristics.
IRISX / Drawing Intelligence
IRISX DRAWING INTELLIGENCE
The intelligence inside every drawing.
IrisX Pro extracts and organizes engineering drawing characteristics to support ballooning, revision workflows, engineering review and structured exports.
Actual screen from the IrisX product tour.
ESTABLISHED FOUNDATION
From drawing pixels to engineering records.
The existing product tour demonstrates characteristic extraction and workflows for engineering drawing review.
Automatic ballooning
Number drawing characteristics and connect them to extracted records.
Revision comparison
Review changes across drawing revisions and maintain more meaningful traceability.
Engineer-in-the-loop review
Inspect characteristics, make corrections, and address exceptions.
Excel & inspection outputs
Export characteristic data and prepare reporting outputs for quality processes.
Local processing
Process drawings within supported private environments.
Actual revision-review screen from the 110-second product tour.
REVISIONS
Keep the change in context.
An engineering change is useful only if the affected characteristics can be found and evaluated.
IrisX Pro includes revision-oriented workflows for engineering drawings. In the existing demo, changed, added and deleted characteristics are visualized alongside the drawing.
Characteristic historyVisual reviewEngineering change context
OUTPUTS
Data leaves the drawing ready to work.
Characteristics should be reusable in inspection, quality, analytics and engineering processes—not trapped inside the image.
- Structured characteristic tables and spreadsheets.
- FAI-style and inspection-oriented reports.
- Product-data and documentation workflows.
- Custom templates and downstream integration projects.
Specific export formats and standard compliance need confirmation by current IrisX version and customer requirements.

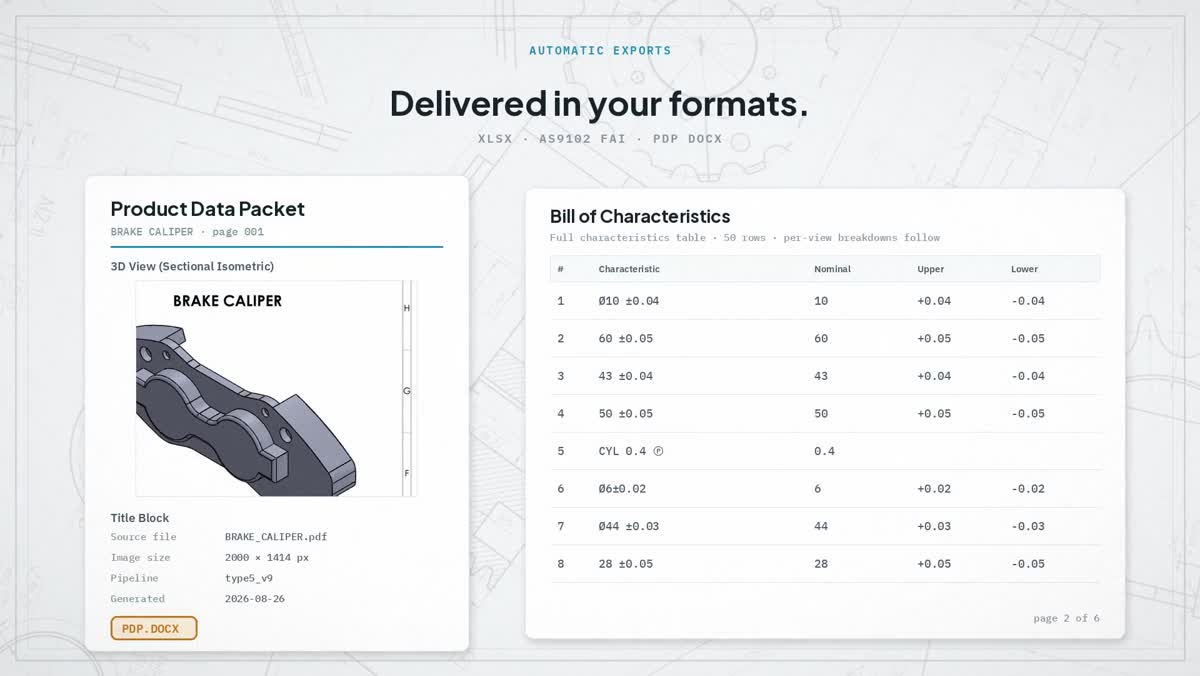

Structured outputs shown in current IrisX demo footage.
REAL PRODUCT DEMONSTRATION
Watch the drawing workflow end to end.
Actual supplied IrisX Pro video. The AI visualization near the end is a concept for downstream applications.
IrisX Pro — full product tour
Drawing ingestion, extraction, 401-callout illustration, revision review, structured output and private processing. Approx. 110 seconds.
Existing software demonstration AI ending is conceptualADDITIONAL DRAWING-INTELLIGENCE CAPABILITIES
Precision work needs more than OCR.
These capabilities featured on the original IrisX website remain part of the product story; supported formats, thresholds and configurations must be confirmed for the production release.
◎
GD&T-aware validation
Engineering syntax and configurable rules help check extracted geometric tolerancing information before downstream use.
◫
Challenging drawing inputs
Specialized processing for skewed, rotated, low-resolution, faded or noisy engineering images; evaluation depends on document quality.
▤
Reusable export templates
Prepare Excel-based data for inspection and customer-specific reporting workflows, including FAI / AS9102 and PPAP-style templates when configured.
↺
Stable characteristic identification
Use balloon numbers as traceability keys for characteristics and compare information as drawings evolve.
▣
High-volume drawing review
Handle dense engineering drawings and multi-page document sets, subject to validated release limits and input types.
♙
Engineering support & adaptation
Our team can help configure rules, processing, templates and customized workflows to match your engineering standards.
START WITH YOUR DOCUMENTS
Put your own drawing to the test.
Request an evaluation using representative documents and the characteristics that matter to your engineering or quality team.
