IRISX WILL SHORTEN THE PRODUCT DEVELOPMENT LIFE-CYCLE
Unleash a World of Possibilities
DISCOVER THE POWER
OF IRISX
IrisX extracts valuable dimensional data from CAD drawings. This data can then be utilized in numerous applications, ranging from manufacturing and quality control to analytics, and even in custom-made applications. Because dimensions are numbered with balloons and revisions are tracked, there is no longer any confusion in communication throughout the product development lifecycle.
Track dimensions
Balloon number drawing features to eliminate confusion in pinpointing any dimensions.
Trace Revisions
With version control easily trace changes made to any drawings.
EXPORT DATA & INFUSE WITH OTHER APPLICATIONS
Export data in excel format for further analysis or infuse with other applications.
Works with PDF drawings, Image files, Solidworks, and NX!
Save Time
Seconds, not hours, to find key characteristics of any mechanical drawing. Push of a button to export all the extracted data, FAI reports and more.
Reduce Errors
Several machine detection models check and interrogate all characters to ensure accuracy. GD&T grammar rules ensure that each callout adheres to the guidelines.
KEEP SECURED
IrisX software does not access the internet and does not send your drawing to unknown locations on the web. Your drawings are secured and stay on premise.
See What’s Possible

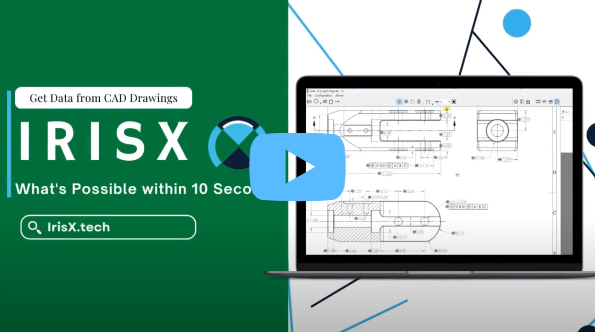

Watch the video for an overview of what’s possible with IrisX!
Reduce Errors
NEVER MISS ANOTHER MEASUREMENT
IrisX utilizes the latest advances in computer vision technologies to scan engineering drawings and identify every piece of characteristic information. With integrated deep learning technology, the software learns from users and improves its knowledge module with every correction they make. Version tracking ensures that the same dimension number remains consistent across any future revisions of parts.
Deep Learning
Computer vision
Our Clients
We work with a wide variety of industries & users
IrisX just works—whether it’s a simple mechanical drawing or complex multi-page drawings. It handles everything from large fonts to tiny fonts, and from a few to hundreds of callouts, including handwritten drawings. With minimal need for customization (in rare cases), it provides out-of-the-box benefits for any industry.

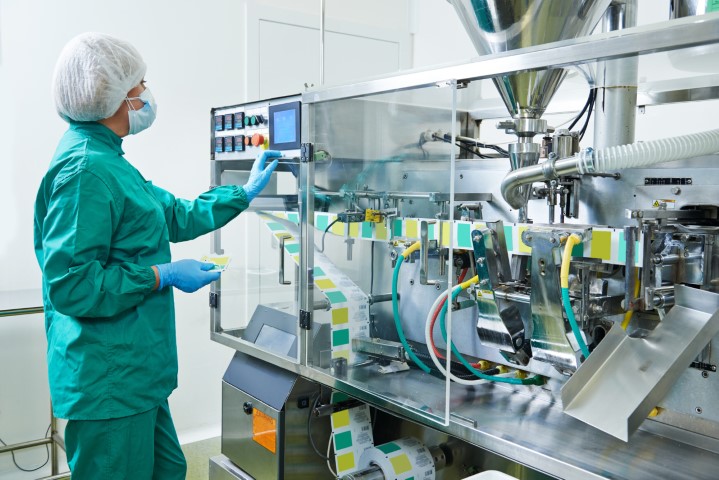

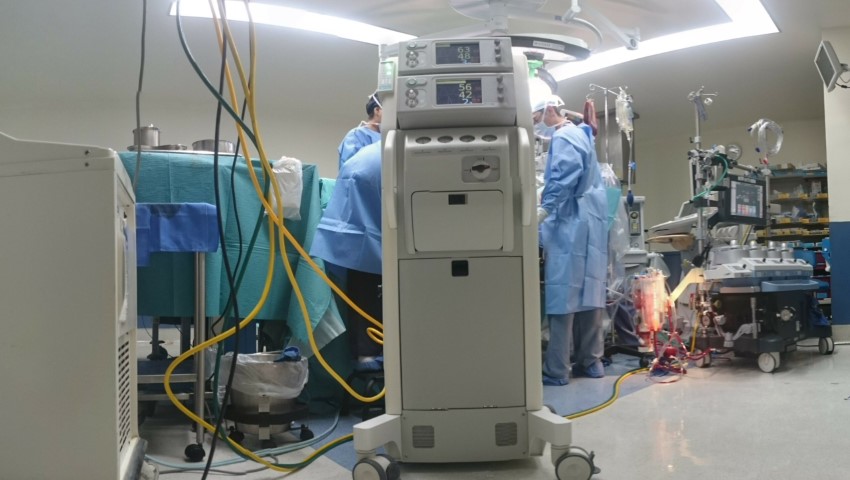

Medical Devices
Aerospace
Defense

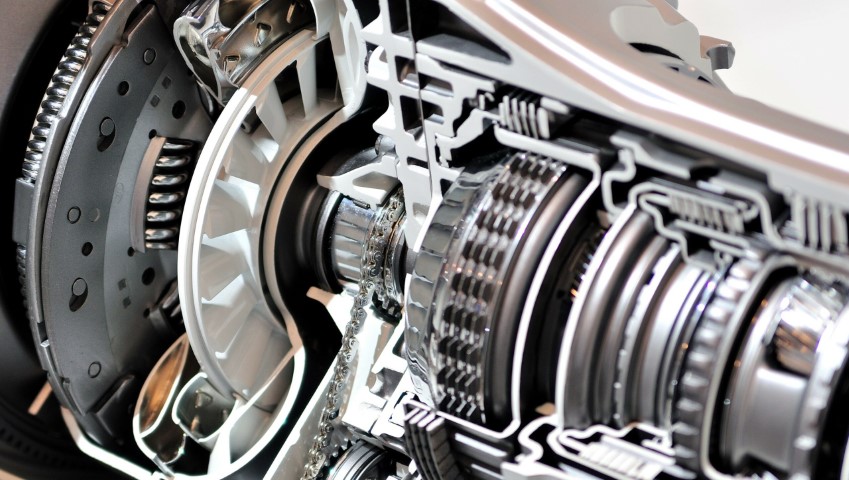

Automotive

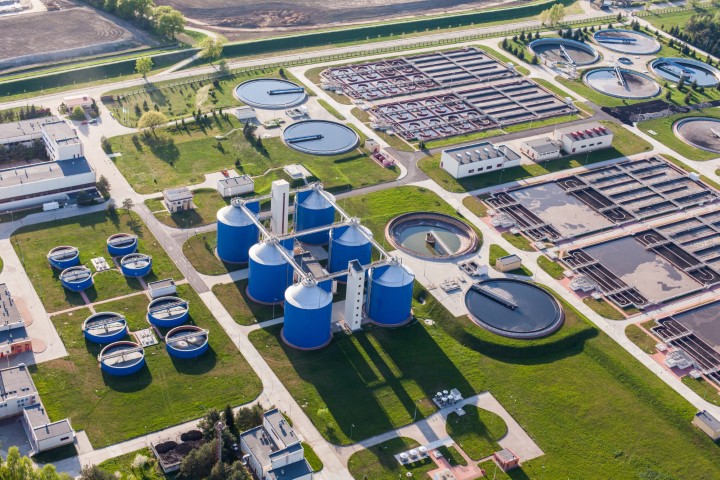

Chemical & Energy
Laboratory Equipment
Game Changer
Why Use IRISX?
EASY
A few min to install, an hour to learn, and intuitive to use.
RELIABLE
Dimensions are ballooned the same way every time and the dimension number stays the same on every revision of the drawing.
READY
The information is saved in excel which is immediately useable.
RUN ANALYTICS ON MORE DATA, WITH MORE ACCURACY, IN LESS TIME
Collect data from drawings in Excel format, which can then be seamlessly integrated into your database or analytics applications. This enables you to uncover valuable insights about mechanical parts, assemblies, and BOMs. Identify correlations, deviations, and potential errors that might otherwise could go unnoticed without the capability to organize rows of data coherently.
Simple Yet Powerful
Because this is such a crucial step – a gateway to many practical applications of drawings – we aspired to develop a simple yet powerful tool that is accessible to the masses.
Meaningful Solution
We aimed to build a bridge between humans and mechanical drawings for those who need to comprehend them, and to develop software capable of creating meaningful solutions.
Beauty Unleashed
Without properties that can be expressed numerically, a technical drawing, devoid of its data elements, is merely a beautiful picture. IrisX adds value by interpreting a drawing’s significance and translating it for a wide variety of uses. There is beauty in the meaning of a technical drawing, and we aim to unleash it.
Better Together
SAVE THOUSANDS OF HOURS WITH IRISX + T360
Tolerance 360 (T360) is the world’s most advanced collaborative tolerance analysis software. Its approach is a paradigm shift that replaces manual intensive processes.
Maximize the benefits of T360 by using it in conjunction with IrisX.
